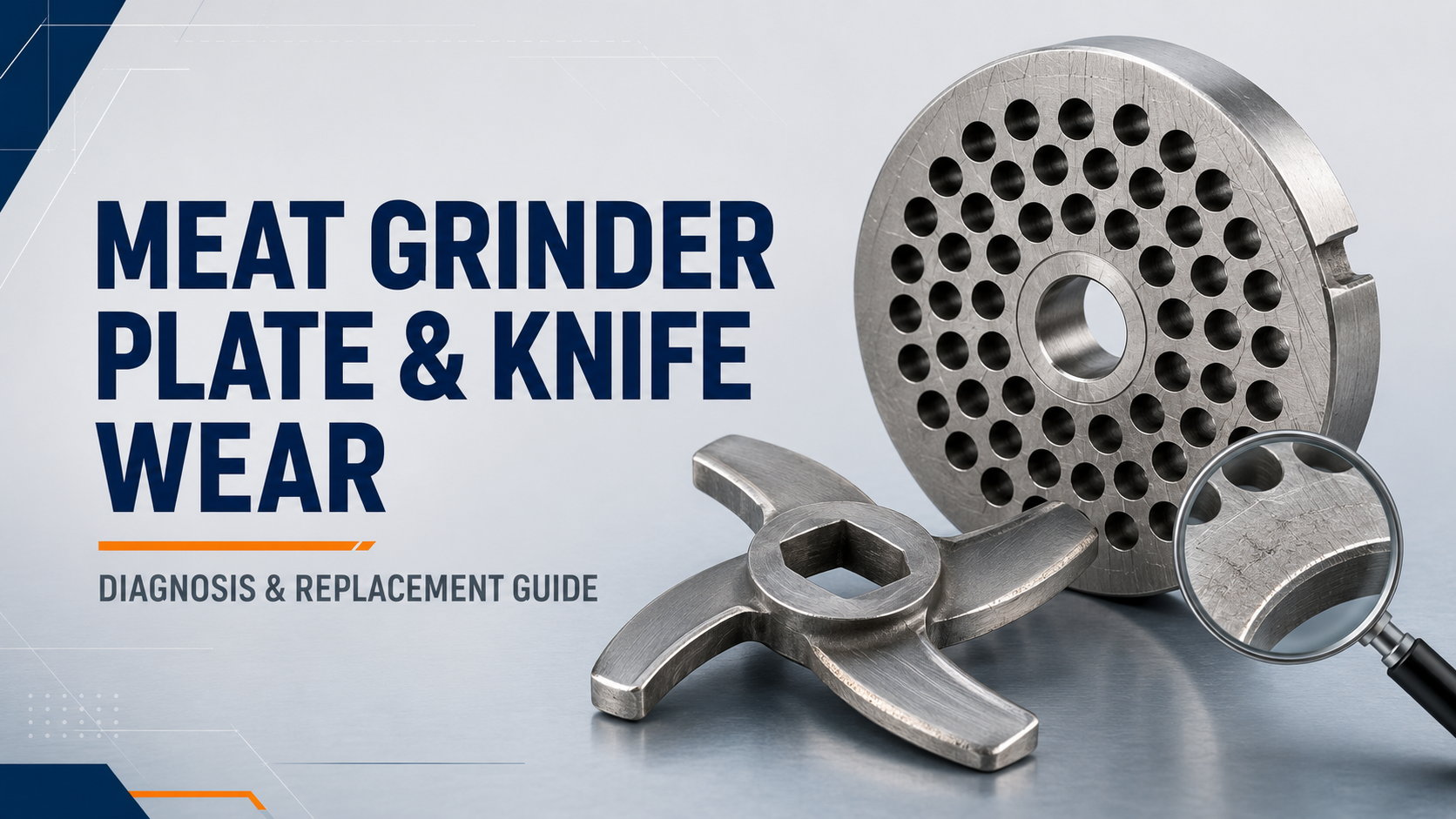

Commercial Meat Grinder Plate and Knife Wear: How to Diagnose, Inspect, and Decide When to Replace

A commercial meat grinder can continue discharging product even when its knife and plate are no longer cutting efficiently. That is why worn tooling is often overlooked: the machine still runs, but the ground meat gradually becomes less defined, discharge slows, connective tissue accumulates more quickly, or operators need to make repeated adjustments to maintain acceptable output.

These symptoms do not automatically prove that the knife or plate is worn. Warm raw material, excessive feed, incorrect assembly, an unsuitable plate size, or wear elsewhere in the grinding head can produce similar results.

The practical question is therefore not simply:

Is the knife still sharp?

A more useful diagnosis asks:

• Are the knife and plate still making uniform cutting contact?

• Do the plate-hole edges still support clean shearing?

• Is the wear even across the cutting faces?

• Does performance recover after the cutting set is professionally serviced?

• Could the same symptoms be caused by the raw material, grinder setup, or another worn component?

This guide explains how commercial kitchens, butcher shops, sausage workshops, commissaries, and small meat processing plants can identify plate and knife wear, distinguish it from other grinding problems, and decide whether the cutting set should be cleaned, resurfaced, replaced, or investigated as part of a wider grinder-head problem.

How the Knife and Plate Produce a Clean Grind

The grinder plate does not determine particle size by itself. It works together with the rotating knife as a cutting pair.

The feed screw moves meat toward the grinding head and presses it against the inner face of the stationary plate. As the knife rotates across that face, its cutting edges pass over the plate-hole openings and shear the meat before it exits.

Effective cutting depends on three conditions:

1. Sharp cutting edges
   The knife edges and the entry edges of the plate holes must be capable of separating tissue without excessive dragging.

2. Flat mating surfaces
   The working face of the knife must maintain close, even contact with the plate.

3. Stable mechanical support
   The knife, plate, feed screw, shaft, locating pin, retaining ring, and related parts must hold the cutting set in the intended position.

A knife may still feel sharp at one point but perform poorly if its working face is no longer flat. A plate may have open, clean holes but fail to cut correctly if its face is uneven or the hole entrances have become rounded.

For this reason, the knife and plate should be evaluated as a system rather than as two unrelated spare parts.

Common Types of Knife and Plate Wear

Not all cutting-set wear looks the same. Identifying the wear pattern helps determine whether normal use, incorrect assembly, contamination, or another mechanical fault is responsible.

Rounded or Polished Knife Edges

A knife edge normally loses its cutting condition gradually. The leading edge may become rounded, polished, or slightly rolled instead of remaining clearly defined.

This reduces the knife’s ability to sever lean tissue, fat, and connective tissue at the plate face. Product may be compressed or dragged before separation, producing softer particles and less distinct boundaries.

Uniform dulling across all knife arms usually suggests normal service wear. If one arm is much more worn than the others, the knife may not be sitting squarely against the plate.

Rounded Plate-Hole Entrances

The hole diameter may still be within specification while the cutting edge around the hole entrance has become rounded.

When this happens, the plate provides less support for the knife’s shearing action. Meat can stretch into the openings before separating, particularly when processing skin, membranes, or connective tissue.

Hole-edge wear can be difficult to judge from the discharge side of the plate. The working face—the side that contacts the knife—requires the closest inspection.

Scoring or Grooving on the Contact Faces

Circular scratches, grooves, or localized scoring can indicate:

• hard particles trapped between the knife and plate;

• damaged cutting components;

• insufficient cleaning before assembly;

• inappropriate tightening;

• operation under unsuitable conditions; or

• irregular contact caused by wear elsewhere in the head.

Light surface marks do not always require replacement. Deep scoring that interrupts flat contact, however, is unlikely to be corrected by installing a new knife alone.

Uneven Face Wear

A cutting set should not make strong contact in one area while leaving another area comparatively untouched.

Uneven polishing, isolated bright spots, or wear concentrated on only part of the plate can indicate:

• a distorted knife or plate;

• an improperly seated component;

• wear on the shaft, locating pin, feed screw, or throat;

• contamination behind the plate;

• or incorrect installation.

Repeated uneven wear after resurfacing should trigger an inspection of the supporting components. Otherwise, a newly serviced cutting set may quickly develop the same problem.

Plate Thinning

Professional resurfacing removes material from the working face. Repeated resurfacing can eventually reduce the plate below the minimum thickness permitted for that grinder or cutting system.

There is no universal discard thickness for every commercial grinder. The plate should be measured and compared with the equipment manufacturer’s specification. A plate that has become too thin may not be held correctly by the retaining system even if its face appears smooth.

Chipping, Cracking, or Deformation

Cracks, chipped cutting edges, enlarged locating notches, severe pitting, bent knife arms, or damaged hubs are not normal dullness.

These conditions can affect alignment and may create a component-failure or foreign-material risk. Damaged parts should not be returned to service simply because grinding performance still appears acceptable.

Production Symptoms That May Indicate Cutting-Set Wear

No single production symptom confirms knife or plate wear. The strongest diagnosis comes from several observations pointing in the same direction.

The table should be used as a diagnostic starting point, not a replacement schedule. Physical inspection is still necessary before the cutting set is condemned.

How to Distinguish Tooling Wear from Other Grinding Problems

Replacing the knife and plate without confirming the cause may provide only temporary improvement—or no improvement at all. Before making that decision, compare the symptoms with the following alternatives.

Raw Material That Is Too Warm

Warm fat deforms more easily and can spread across lean particles even when the cutting set is serviceable. If several products show acceptable grinding performance but one warm or high-fat batch smears, raw material condition is more likely to be the main cause.

If smearing occurs with properly conditioned meat and becomes progressively worse as the same cutting set is used, tooling condition deserves closer attention.

A separate guide explains how temperature, feed behavior, plate restriction, and mechanical handling interact in fat smearing during commercial meat grinding.

High Connective-Tissue Load

Sinew and membranes can wrap around the knife hub or cover plate openings even when the knife and plate are not at the end of their service life.

The important distinction is whether the grinder struggles only with sinewy material or also shows poor cutting on properly trimmed, controlled raw material. If the issue is material-specific, preprocessing, feed geometry, plate selection, and sinew management should be investigated before wear is assumed.

For a more focused explanation of this failure mode, see why meat grinders jam on sinewy raw material.

Excessive Feed or Oversized Pieces

A sharp cutting set cannot compensate indefinitely for product entering the head faster than it can be cut and discharged.

Overfeeding can create intermittent discharge, higher resistance, and apparent loss of capacity. Oversized or irregular pieces may also bridge in the feed path or reach the cutting zone unevenly.

Repeat the evaluation with a controlled feed rate and consistent input-piece size. If performance improves immediately, loading conditions were contributing to the problem.

An Overly Restrictive Plate or Reduction Step

A small final-hole plate creates more resistance than a coarse plate. Attempting an aggressive reduction in one pass may make a healthy cutting set appear inefficient, especially with cold, fibrous, or high-fat material.

Compare current performance with the grinder manufacturer’s recommended plate sequence and material limits. A different plate or an intermediate grinding step may be more appropriate than increasing pressure on the existing setup.

Incorrect Assembly or Retaining Pressure

A knife installed in the wrong orientation cannot make the intended cutting contact. Product residue behind the plate, an incorrectly seated locating notch, or the wrong component sequence can also prevent the cutting set from sitting squarely.

The retaining ring or nut must be adjusted according to the equipment manual. Insufficient retention may allow unstable contact, while excessive tightening can create unnecessary friction and heating. There is no universal tightening rule that should replace the manufacturer’s procedure.

Wear Elsewhere in the Grinding Head

The knife and plate depend on the surrounding components for alignment. A worn feed screw, throat, shaft, locating pin, bushing, or drive interface may allow irregular movement at the cutting face.

Suspect supporting-component wear when:

• a resurfaced set develops uneven wear unusually quickly;

• several cutting sets show the same contact pattern;

• the knife does not rotate evenly against the plate;

• excessive movement or clearance is present;

• or replacing the knife and plate does not correct the problem.

In these cases, repeatedly installing new cutting components treats the symptom rather than the mechanical cause.

A Safe Inspection Procedure After Shutdown

Inspection should only begin after the grinder has been stopped and isolated according to its operating manual and the facility’s safety procedure. On equipment covered by a lockout/tagout program, the required energy-control procedure must be followed.

Knives remain hazardous even when the grinder is disconnected. Use suitable cut-resistant protection and the manufacturer’s approved removal tools.

1. Record the Operating Symptoms

Before disassembly, document:

• product and formulation;

• inlet and outlet temperature;

• plate size;

• approximate feed rate or hourly output;

• run duration;

• discharge appearance;

• abnormal sound or load indications;

• and whether the problem developed gradually or appeared suddenly.

This prevents the inspection from becoming a purely visual decision with no process context.

2. Remove the Cutting Set in the Correct Sequence

Follow the machine-specific disassembly procedure. Do not allow the knife and plate to fall, strike each other, or contact a hard work surface because impact can damage their edges or mating faces.

Keep multi-stage cutting components in their installed order so the original arrangement can be verified.

3. Clean Before Evaluating Wear

Meat residue, fat film, and connective tissue can hide scoring and make a flat component appear uneven. Clean, rinse, and dry the parts using methods approved for the material and food-contact application.

Do not inspect the cutting faces while residue remains trapped in the plate holes or around the knife hub.

4. Examine the Knife

Check each arm rather than inspecting only one convenient edge. Look for:

• rounded cutting edges;

• rolled or chipped areas;

• unequal wear between arms;

• scoring on the working face;

• bent arms;

• cracks;

• hub damage;

• and corrosion or pitting in the contact area.

Unequal wear is particularly important because it may indicate an alignment problem beyond normal dulling.

5. Examine Both Sides of the Plate

Confirm which face was operating against the knife. Inspect that face for:

• rounded hole entrances;

• grooves or scoring;

• uneven polishing;

• deformation around the holes;

• cracks or edge damage;

• damage to the locating notch;

• and loss of flat contact.

Some plates are designed for a specific orientation, while others may be reversible only under defined conditions. Do not reverse a plate unless the equipment or cutting-system manufacturer permits it.

6. Evaluate Contact and Flatness

A basic visual comparison can reveal obvious rocking or gaps when the clean knife is placed against the plate. However, this is only a screening check. It does not replace precision flatness measurement or professional resurfacing equipment.

If the contact pattern is uncertain, have the set evaluated by a qualified sharpening service or equipment technician. Improvised grinding can round the surfaces, remove material unevenly, or change the cutting geometry.

7. Inspect the Supporting Parts

Before blaming the cutting set alone, examine the visible condition of the:

• feed screw or worm;

• knife drive interface;

• supporting shaft;

• plate locating pin;

• throat;

• retaining threads;

• spacers or compensating rings, where fitted.

Excessive clearance, damaged locating parts, or an unstable drive connection can prevent a good knife and plate from working correctly.

Should the Knife and Plate Be Resurfaced or Replaced?

Resurfacing is appropriate when normal wear has reduced sharpness or flatness but the components remain structurally sound and within the manufacturer’s dimensional limits.

Professional service should restore the relevant faces while maintaining the required geometry. In most commercial applications, the knife and plate should be serviced and managed as a matched cutting set. Resurfacing only the knife while continuing to use an uneven plate may not restore full contact.

Replacement is generally the safer decision when one or more of the following applies:

• the knife or plate is cracked;

• a knife arm is bent or chipped;

• the plate is warped or severely scored;

• plate holes or locating features are damaged;

• corrosion or pitting affects the cutting surface;

• the component is below its permitted thickness;

• flatness cannot be restored without exceeding dimensional limits;

• the hub or drive interface is worn;

• or professional resurfacing fails to restore consistent performance.

The final decision should follow the grinder and cutting-system manufacturer’s limits. Part appearance alone is not enough to determine whether repeated resurfacing remains acceptable.

Why Installing a New Knife Alone May Not Solve the Problem

A common maintenance response is to replace the knife because it appears to be the active cutting component. The plate is then reused because its holes remain open and its overall shape looks intact.

This can fail for three reasons.

First, the plate-hole entrances may already be rounded. A sharp knife cannot create an efficient shearing edge against a worn hole entrance.

Second, the plate face may have developed grooves or unevenness that prevents uniform knife contact.

Third, the new knife may begin wearing toward the old plate’s irregular contact pattern, reducing the useful life of the replacement.

If a new knife produces little improvement, stop treating knife sharpness as the only variable. Inspect the plate face, assembly, retaining pressure, shaft, feed screw, throat, and locating components before continuing production.

Building a Condition-Based Maintenance Routine

A fixed replacement interval can be useful, but operating hours alone do not describe cutting-set condition. Wear rate changes with product type, bone or hard-particle contamination, connective-tissue content, plate size, throughput, cleaning practices, and assembly quality.

A more reliable program combines time-based inspection with performance trends.

Establish a Baseline with a Verified Cutting Set

After installing or professionally servicing a matched set, record:

• normal discharge appearance;

• outlet temperature rise;

• approximate throughput;

• motor load, if available;

• performance on representative raw materials;

• and the typical condition at the end of a run.

Later observations can then be compared with a known working baseline rather than with operator memory.

Changes in outlet temperature should be treated as supporting evidence, not proof of wear. Horus discusses the other mechanical and material causes in its guide to temperature rise during meat grinding.

Keep Cutting Sets Identified as Pairs

Where the cutting-system design requires matched components, label and store the knife and plate together. Avoid casually mixing a knife with plates that have different wear histories.

A simple record can include:

• set identification number;

• grinder model;

• date installed;

• products processed;

• approximate operating hours;

• date removed;

• inspection findings;

• resurfacing history;

• and reason for replacement.

Protect the Contact Faces During Storage

After approved cleaning and drying, store components so that the cutting faces do not strike other metal parts. Follow the manufacturer’s corrosion-prevention instructions, particularly for carbon-steel components.

Do not leave cutting sets wet or loose in a container where impacts can damage the edges.

Investigate Repeated Abnormal Wear

If the same wear pattern returns quickly, shortening the replacement interval is not a complete solution.

Check for:

• incorrect assembly;

• excessive or insufficient retaining pressure;

• contaminated mating surfaces;

• worn locating or drive components;

• inappropriate parts;

• unsuitable raw material;

• and overload or foreign-material events.

Abnormally rapid wear is evidence that the cutting set may be responding to another problem.

A Practical Decision Sequence

When grind quality begins to deteriorate, use the following order:

1. Stabilize the raw material.
   Confirm temperature, input-piece size, fat condition, and connective-tissue load.

2. Confirm the operating setup.
   Check plate selection, feed rate, component sequence, installation orientation, and manufacturer-specified retention.

3. Clean and inspect the cutting set.
   Look for dull edges, rounded hole entrances, scoring, uneven contact, damage, and excessive thinning.

4. Inspect the supporting components.
   Check the feed screw, throat, shaft, locating pin, spacers, and drive connection.

5. Service the knife and plate as a set where required.
   Use qualified resurfacing rather than uncontrolled hand grinding.

6. Repeat the original operating condition.
   Compare discharge quality, temperature rise, flow, and load with the recorded baseline.

7. Escalate the diagnosis if performance does not recover.
   Persistent problems after installing a verified cutting set suggest that the root cause lies elsewhere in the grinder or process.

This sequence avoids replacing parts before raw material and setup variables have been controlled, while also preventing worn tooling from being left in service simply because the machine still turns.

What Buyers Should Evaluate Beyond Rated Grinding Capacity

Rated kilograms per hour do not show how easily the cutting set can be inspected, how stable the grinder remains as tooling wears, or how readily replacement parts can be obtained.

When comparing equipment from a commercial meat grinder range, buyers should also ask:

• Can the cutting set be removed without complicated disassembly?

• Are the knife, plate, and related wear parts clearly identified?

• Are compatible plate sizes and replacement sets available?

• Does the manual specify the correct component orientation and servicing limits?

• Can the grinder maintain stable discharge on the intended raw material?

• Is the grinder easy to clean thoroughly before reassembly?

• Can the supplier help distinguish cutting-set wear from feed-screw, throat, or shaft wear?

These questions are especially important for restaurants, butcher shops, central kitchens, and small processing plants that cannot keep multiple grinders on standby. Maintainability and parts support can affect usable capacity as much as the motor rating.

Conclusion

Plate and knife wear should be diagnosed as a cutting-interface problem, not assumed from poor discharge appearance alone.

The most reliable evidence is a combination of:

• declining performance under controlled raw material conditions;

• visible loss of cutting edges or flat contact;

• abnormal wear patterns;

• and measurable recovery after a matched cutting set is correctly serviced or replaced.

Temperature rise, fat smearing, slower discharge, and connective-tissue accumulation are valuable warning signs, but each can also have other causes. A structured inspection must therefore consider the raw material, feed conditions, plate selection, assembly, and supporting grinder-head components before reaching a decision.

The goal is not to replace a knife or plate at the first sign of variation. It is to identify when the cutting set has stopped producing efficient, repeatable shearing—and to correct the actual cause before poor grind quality develops into lost output, unnecessary operator intervention, or damage to other components.
