In commercial meat grinding, fat smearing is often treated as a visible product defect. By the time operators can clearly see it, however, the problem usually started much earlier.
What looks like a simple appearance issue is actually a sign that the grinding process has shifted away from clean cutting and toward compression, friction, and heat build-up. Once that happens, the grinder is no longer producing clearly defined lean and fat particles. Instead, fat begins to spread across the lean surface, coat the plate holes, and reduce particle definition throughout the product.
This matters for more than appearance. Fat smearing can affect texture, temperature rise, downstream mixing performance, stuffing consistency, slicing quality, and the overall stability of the process during long production runs.
For processors evaluating different commercial meat grinders, clean particle definition and stable cutting performance should be considered alongside rated capacity.
In high-volume plants, fat smearing can also become a hidden cause of rework, downgraded product, and capacity loss.
Understanding why fat smearing happens requires looking beyond the final ground product. In most cases, the real causes begin with raw material condition, cutting system performance, pressure inside the head, and how the grinder behaves under continuous load.

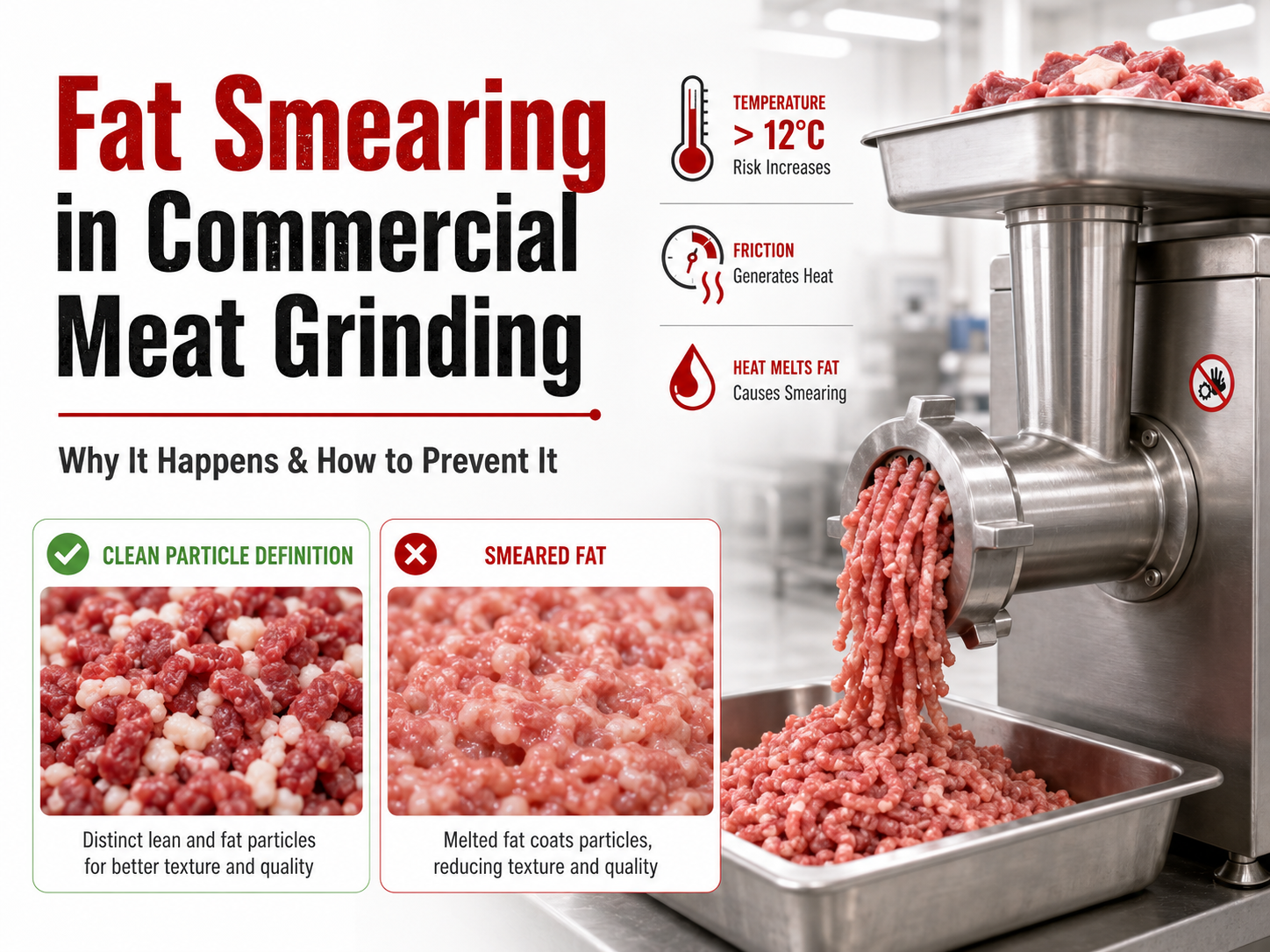

Fat smearing happens when fat is not cleanly cut into defined particles. Instead, it is dragged, compressed, or rubbed across the surface of the meat during grinding.
A properly performing grinder shears meat and fat cleanly. The knife cuts against the plate, and the product exits with visible particle separation and a defined structure. When smearing starts, that clean shearing action is weakened. The cutting head begins to act less like a precision cutting system and more like a compression zone.
The result is usually visible in several ways:
blurred or poorly defined fat particles
greasy surface appearance
fat coating on lean particles
softer, pastier product structure
more product build-up around the plate or knife
faster temperature rise through the grinder head
In commercial production, this is especially important for fresh sausage, burger production, ground beef, coarse-ground products, and any application where particle definition affects appearance, bite, and downstream handling.
Fat smearing rarely comes from one single cause. In most plants, it develops when several conditions combine: the product is slightly warmer than ideal, the knife and plate are no longer cutting perfectly, pressure increases inside the head, and friction starts to replace clean shearing.
That is why operators sometimes say the product looked fine at the beginning of the shift but became greasy or less defined later in the run. The grinder did not suddenly fail. The process gradually moved out of its stable cutting window.
Temperature is usually the first place to look, but not in the overly simple sense of “keep meat cold.”
The real issue is not only whether the meat is cold, but whether the lean and fat remain firm enough to be cut cleanly throughout the entire grinding cycle. Fat softens faster than many processors expect. Once it loses firmness, it becomes much easier to drag and smear under pressure.
This becomes worse when:
trim enters the grinder at inconsistent temperatures
fatty raw material is warmer than lean raw material
product sits too long before grinding
rework is blended back in at a higher temperature
production runs extend long enough for product and components to warm up
Even small temperature changes can make a visible difference in particle definition, especially on finer grinds or high-fat formulations.
Temperature control is also critical to emulsification in sausage production, where excessive heat can contribute to fat smear, fat separation, and unstable product texture.
One of the most common causes of fat smearing is a cutting set that still runs but no longer cuts efficiently.
In commercial grinders, the knife and plate must work as a matched shearing pair. When the knife edge becomes dull, the plate face wears unevenly, or contact pressure is no longer correct, the product is not sliced cleanly. It is pushed, dragged, and compressed before it exits the plate.
This shift has several consequences at once:
more friction
more temperature rise
more pressure inside the head
lower particle definition
greater tendency for fat to smear across the plate surface
This is why some grinders appear to maintain output while product quality is already declining. Throughput may still look acceptable, but the cutting action has deteriorated. By the time operators notice obvious smear, the tooling problem is often already well advanced.
Even a sharp knife will not perform well if the contact against the plate is unstable.
Inconsistent contact can come from wear, poor assembly, inadequate tension, head misalignment, or component tolerances that are no longer tight enough under load. In those cases, the product passes through a cutting head that is technically rotating but is not maintaining uniform cutting pressure across the plate face.
That matters because commercial grinding is not just about rotation speed. It depends on controlled, stable, continuous shearing at the interface between knife and plate. If that interface weakens, smearing often starts before operators notice any major drop in output.
Fat smearing becomes much more likely when the grinder head is generating too much internal pressure.
Pressure is necessary in grinding, but too much pressure causes the product to spend more time compressed before it is cut and discharged. Instead of moving through the head in a controlled way, the meat and fat are forced, packed, and rubbed through the cutting zone.
This can happen when:
the plate is too fine for the raw material condition
the grinding sequence is too aggressive in one pass
the feed screw compresses the product too hard
product flow becomes restricted at the head
sinew and connective tissue create drag and resistance
The key point is that smearing is often not only a cutting issue. It is also a pressure-management issue.
A grinder that builds excessive back pressure may still process meat, but it does so by increasing compression and friction. That usually shows up as poorer particle definition, more fat drag, and higher outlet temperature.
Some processors focus almost entirely on motor power when evaluating grinder performance. In practice, feed behavior often has just as much influence on smearing.
If the screw aggressively compresses the product without maintaining stable flow into the knife and plate, it can create localized pressure spikes and uneven product loading.
A properly designed progressive-pitch auger can help feed material toward the cutting head more steadily and reduce sudden product build-up inside the grinding chamber.
This is especially important when processing fatty trim, sinewy material, or mixed raw material sizes.
Poor flow behavior can appear in two opposite ways:
Overfeeding: The head becomes overloaded and compression rises.
Starved feeding: Product flow becomes uneven and cutting stability declines.
Neither condition supports clean particle formation. The most stable grinders are not simply the most powerful ones. They are the ones that feed product into the cutting set in a controlled, repeatable way.
Fat smearing is much more common when plants run raw material with variable composition but treat it as if it behaves the same.
High-fat trim, soft fat, connective tissue, sinewy lean, and mixed-size input all change how product moves through the grinder head. A cutting system that performs well on one raw material may smear badly on another if pressure, resistance, and temperature rise are not controlled.
This is why the same grinder can produce good results in one product and disappointing results in another. The machine may not have changed. The interaction between raw material condition and cutting conditions did.
A grinder that performs well for fifteen minutes may still struggle during an eight-hour production shift.
A commercial meat grinder for continuous production should therefore be evaluated for grind consistency, temperature behavior, feed stability, and downtime across the full working period—not only during a short demonstration.
As production continues, several small effects accumulate:
knife and plate surfaces warm up
friction increases
cutting efficiency gradually falls
product spends more time under pressure
fat softens further
smearing becomes more visible
This is one reason factory trials can be misleading if they are too short. Under real production conditions, the question is not just whether a grinder can process meat. It is whether it can maintain clean particle definition after hours of continuous load in a wet, demanding environment.
It is easy to treat fat smearing as a cosmetic problem, but the downstream effects are broader than that.
When fat is smeared rather than cut cleanly, processors may see:
less defined texture in coarse-ground products
greasy or pasty mouthfeel
weaker visual separation between lean and fat
more unstable product temperature before mixing or stuffing
less predictable bind development in downstream processing
poorer consistency in filling and portioning
reduced slice definition after cooking or chilling
more product variation from the beginning of the shift to the end
In other words, fat smearing is often an early signal that the process is drifting away from control. The visible defect is only one part of the cost.
Not all grinders behave the same under demanding conditions.
Machines that control smearing better usually do not succeed because of one headline specification alone. They perform better because several design factors work together:
more stable knife-to-plate contact
better head alignment under load
feed screw geometry that supports smoother product flow
stronger cutting performance on sinewy or mixed raw material
lower unnecessary residence time in the head
easier maintenance of sharp, correctly matched tooling
more consistent performance during long production runs
This is also why motor power alone does not reliably predict grinding quality. A high-power machine can still smear badly if the cutting system, pressure behavior, and feed stability are not well controlled.
Preventing fat smearing requires controlling the grinding process as a system, not just adjusting one variable after defects appear.
The goal is not just “cold product,” but stable and appropriate product firmness for both lean and fat.
Plants usually get better results when they control:
incoming trim temperature
hold time before grinding
rework temperature
batch-to-batch temperature variation
fat and lean consistency within the same load
The more variable the raw material, the harder it is to maintain clean cutting.
Tooling should be treated as a production variable, not just a maintenance item.
That means checking:
knife sharpness
plate face condition
flatness and contact quality
correct matching of knife and plate
wear patterns over time
If the cutting set is no longer producing clean shear, smearing usually follows quickly.
Equipment with tool-free grinder disassembly can make routine inspection, cleaning, plate replacement, and knife-condition checks easier between production batches.
Trying to force too much size reduction in one step often increases pressure and friction.
For some products, staged grinding produces better control than pushing warm, fatty, or variable raw material through an overly restrictive final plate in a single pass. The best configuration depends on raw material type, fat level, and required final particle size.
More feed is not always better.
If hopper loading, screw behavior, or product presentation to the head becomes unstable, smearing can increase even before output drops. Plants should watch for inconsistent feed behavior, bridging, overload, or sudden changes in motor load during the run.
A grinder that raises product temperature too quickly is usually warning you that friction and pressure are becoming excessive.
It is often more useful to monitor temperature increase through the grinder than to look only at incoming product temperature. The temperature difference between the inlet and outlet can reveal declining cutting efficiency earlier than visual inspection alone.
When smearing appears, troubleshooting should start with timing and pattern.
Ask:
Does smearing begin immediately or only later in the shift?
Does it happen only on fatty raw material?
Does it worsen on finer plates?
Does it appear after knife changes or after long runs?
Does it occur only at higher throughput?
These patterns help show whether the main cause is raw material condition, tooling condition, pressure build-up, or long-run heat accumulation.
In many commercial operations, fat smearing begins in one of three places.
The product enters the grinder already too warm, too soft, or too inconsistent for clean cutting.
The knife and plate are still operating but are no longer maintaining clean, stable shear.
The machine is building too much compression before discharge, causing friction, drag, and heat.
The visible defect at the outlet is simply where the problem becomes obvious.
For processors choosing a commercial grinder, the right question is not just how many kilograms per hour the machine can process under ideal conditions.
A more useful evaluation is whether it can maintain particle definition and low smear under real plant conditions, including:
fatty and sinewy raw material
long production runs
variable input size
fine grinding steps
humid workshop conditions
washdown-driven maintenance cycles
continuous production at commercial load
In practical terms, processors should pay attention to:
actual product temperature rise
stability of knife-to-plate cutting
behavior under mixed raw material conditions
consistency from the start of the shift to the end
ease of keeping the cutting set in proper condition
These factors often tell more about real grinding performance than headline power or rated capacity alone.
Fat smearing in commercial meat grinding is not just a visual quality issue. It is usually a sign that the grinding process has moved away from clean shearing and toward friction, pressure, and heat.
That shift often begins earlier than plants expect. By the time the product looks greasy or poorly defined, the root causes may already include unstable raw material temperature, worn tooling, weak knife-to-plate contact, excessive head pressure, or declining performance during long continuous runs.
Preventing fat smearing therefore requires more than colder meat or sharper knives alone. It requires control over the full grinding system: raw material condition, cutting set performance, pressure management, feed behavior, and machine stability under real production load.
In plants where particle definition, texture consistency, and long-run stability matter, fat smearing should be treated as an early process warning—not just a surface defect.
